2461060000 | Weidmüller

Socket, RJ45, 8 pole, solder connection, 2461060000

Order No.: 53P1935
EAN: 4050118476439
MPN:
2461060000
RJ45M R1D 3.3N4Y/G TY

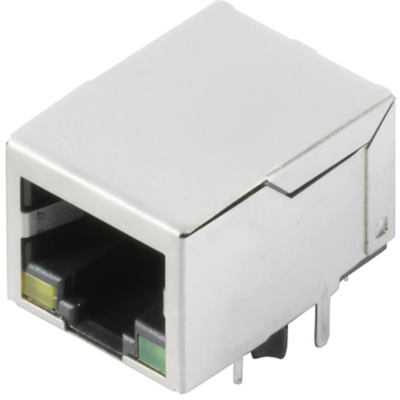

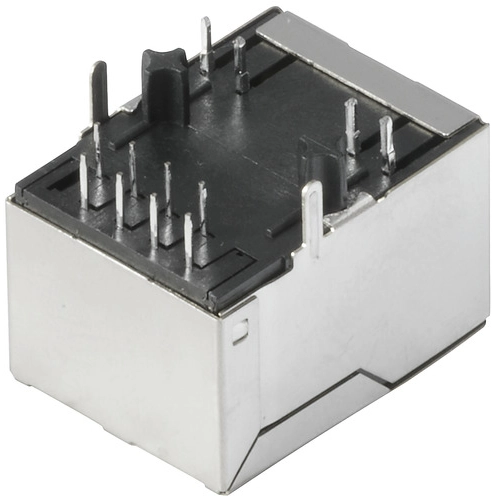

2461060000 Weidmüller Modular Connectors Image 1
2461060000 Weidmüller Modular Connectors Image 2
2461060000 Weidmüller Modular Connectors Image 3
2461060000 Weidmüller Modular Connectors Image 4
Image may differ
Unit Price (€ / pc.)
2.5109 € *
Available in 5 Days: 888 pcs. - if ordered today
Total Price:
175.76 € *
*incl. VAT plus shipping costs
Subject to prior sale
70 pcs.
2.5109 €

RJ45 connector, 2461060000, Weidmüller

PCB connector, RJ45 jacks, transformer, THT/THR solder termination, pole count: 8,90°, gold over nickel, black, tray (hand assembly)

RJ45 connector can be assembled in the field without special tools.

Technical specifications
Filter Property Value
Connection solder connection
Version socket
Pin number 8 pole
RJ-Version RJ45
Logistics
Property Value
Country of origin CN
Customs tariff number 85366990
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
