1460580000 | Weidmüller

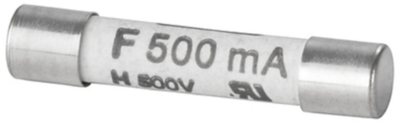

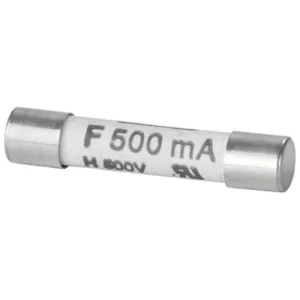

Microfuse 6.3 x 32 mm, 500 mA, F, 500 V (AC), 50 kA breaking capacity, 1460580000

Order No.: 51P3814
EAN: 4050118266603
MPN:
1460580000
GZ 0.5A/F
Series: GZ
1460580000 Weidmüller Micro Fuses
Image may differ
Unit Price (€ / pc.)
0.6902 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
0.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
0.6902 €

Micro fuse, 1460580000, WEIDMÜLLER

The 1460580000 is a quick-acting fuse and it is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • High rated voltage
  • Fuse accessories
  • High breaking capacity
  • Cartridge model
Technical specifications
Filter Property Value
Rated current 500 mA
Design 6.3 x 32 mm
Version microfuse
Rated voltage (AC) 500 V
Height 32 mm
Enclosure ceramic tube
Tripping characteristics F
diameter 6.3 mm
Breaking capacity 50 kA
Logistics
Property Value
Country of origin DE
Customs tariff number 85361010
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
