0546900000 | Weidmüller

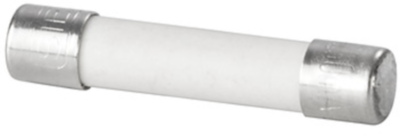

Microfuse 5 x 25 mm, 250 mA, M, 250 V (AC), 80 A breaking capacity, 0546900000

Order No.: 50P1489
EAN: 4008190097370
MPN:
0546900000
G 25/0.25A/M GE
Series: G 25
0546900000 Weidmüller Micro Fuses
Image may differ
Unit Price (€ / pc.)
3.8437 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
3.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
3.8437 €

Micro fuse, 0546900000, WEIDMÜLLER

The 0546900000 is a medium time-lag fuse that allows for a temporary current surge without going above the fuse's current rating. Because of this time delay fuses are most commonly used to protect motor circuits.

Features

  • High rated voltage
  • Fuse accessories
  • High breaking capacity
  • G-type
Technical specifications
Enclosure ceramic tube
Rated current 250 mA
diameter 5 mm
Tripping characteristics M
Length 25 mm
Breaking capacity 80 A
Rated voltage (AC) 250 V
Version microfuse
Design 5 x 25 mm
Logistics
Country of origin DE
Customs tariff number 85361010
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
