0439000000 | Weidmüller

Microfuse 5 x 20 mm, 630 mA, F, 250 V (AC), 1.5 kA breaking capacity, 0439000000

Order No.: 50P1152
EAN: 4008190131210
MPN:
0439000000
G 20/0.63A/F
Series: G 20
0439000000 Weidmüller Micro Fuses
Image may differ
Unit Price (€ / pc.)
1.2971 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
1.30 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.2971 €

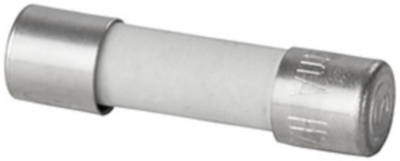

Micro fuse, 0439000000, WEIDMÜLLER

The 0439000000 is a quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • RoHS-compatible
  • Suitable for mounting in fuseholder / clip
  • High breaking capacity up to 1500 A
Technical specifications
Enclosure ceramic tube
Rated current 630 mA
diameter 5 mm
Tripping characteristics F
Length 20 mm
Breaking capacity 1.5 kA
Rated voltage (AC) 250 V
Version microfuse
Design 5 x 20 mm
Logistics
Country of origin DE
Customs tariff number 85361010
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
