0431000000 | Weidmüller

Microfuse 5 x 20 mm, 2.5 A, F, 250 V (AC), 1.5 kA breaking capacity, 0431000000

Order No.: 50P1142
EAN: 4008190085513
MPN:
0431000000
G 20/2.50A/F
Series: G 20
0431000000 Weidmüller Micro Fuses
Image may differ
Unit Price (€ / pc.)
1.0115 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
1.01 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1.0115 €

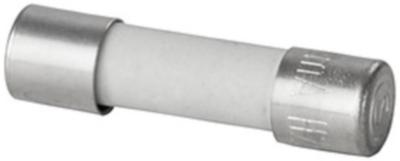

Micro fuse, 0431000000, WEIDMÜLLER

The 0431000000 is a quick-acting fuse that is designed to protect less sensitive components and is also used to protect cabling from melting or catching fire when an overload occurs.

Features

  • RoHS-compatible
  • Suitable for mounting in fuseholder / clip
  • High breaking capacity up to 1500 A
Technical specifications
Enclosure ceramic tube
Tripping characteristics F
Breaking capacity 1.5 kA
Rated voltage (AC) 250 V
Rated current 2.5 A
Version microfuse
Length 20 mm
Design 5 x 20 mm
diameter 5 mm
Logistics
Customs tariff number 85361010
Country of origin DE
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
