1488520000 | Weidmüller
LED light, 5 W, 24 V, 393 lm, 6000 K, 1488520000
Order No.: 51P4615
EAN: 4050118298666
MPN:
1488520000
FP MONO LED DC SA
Unit Price (€ / pc.)
181.3322 € *
Standard delivery time from the manufacturer is: 4 Weeks

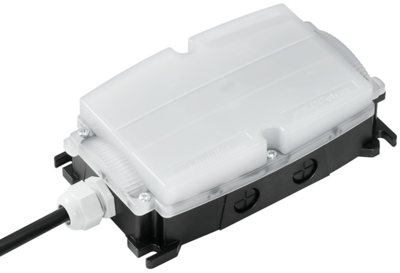

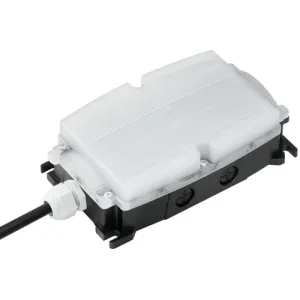

Led lamp, 1488520000, Weidmüller
The cool white LED lamp has higher energy efficiency and service life than fluorescent lamp, and is suitable for harsh environment (shock and vibration, temperature range).
Features
- Can be used worldwide thanks to the multi-voltage input (20 V to 60 VDC)
- High fire protection classification V0
- Beam direction to one side
- 5 W Power
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | LED light | |
| Power | 5 W | |
| Rated voltage | 24 V | |
| Luminous flux | 393 lm | |
| Colour temperature | 6000 K | |
| Length | 208 mm | |
| Width | 104 mm | |
| Height | 55 mm | |
| Energy efficiency class | F | |
| Colour | white | |
| Degree of protection (IP) | IP54 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 70 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 94059900 |
| Country of origin | SK |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| SVHC free | No |
| RoHS conform | Yes |
