8693240000 | Weidmüller
Relay, 1 Form C (NO/NC), 12 V (DC), 360 Ω, 30 A, 250 V (AC), monostable, 8693240000
Unit Price (€ / pc.)
4.3316 € *
Standard delivery time from the manufacturer is: 10 Weeks

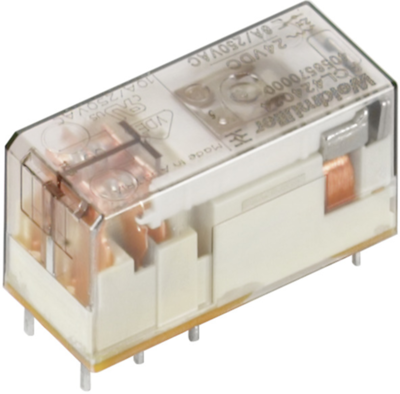

Industrial relay, 8693240000, WEIDMÜLLER
The relay module is available in many variants and can be exchanged quickly and easily. Ideal for use in modular systems. Their large illuminated ejection lever also serves as a status LED with integrated holder for markers, making maintenance easier. It is particularly space-saving and are available in widths from 6.4 mm. This products you can reliably and permanently switch industrial loads.
Features
- Plug-in connection
- Protection degree: IP20
- Overvoltage category III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 360 Ω | |
| switching current | 30 A | |
| Coil voltage (DC) | 12 V | |
| Connection | plug-in connection | |
| Coil type | monostable | |
| Contact type | 1 Form C (NO/NC) | |
| Contact material | AgNi | |
| Switching Voltage (AC) | 250 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
