8690200000 | Weidmüller
Relay, 4 Form C (NO/NC), 24 V (DC), 777 Ω, 12 A, 240 V (AC), monostable, 8690200000
Unit Price (€ / pc.)
15.3510 € *
Available: 4 pcs.
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
15.35 € *
Price list
Quantity
Price per unit*
1 pcs.
15.3510 €
10 pcs.
14.1253 €
50 pcs.
12.8520 €
100 pcs.
11.5668 €
*incl. VAT plus shipping costs
Subject to prior sale

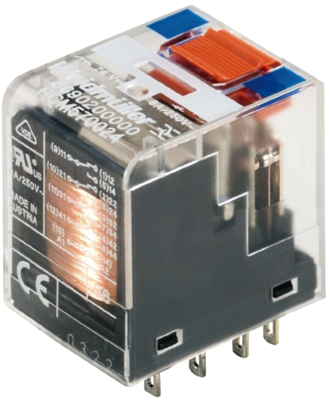

Industrial relay, 8690200000, WEIDMÜLLER
Individual relay is the right choice for the reliable separation of input and output signals in industrial automation. This high-quality universal relay with many sophisticated details and international approvals in different designs for industrial applications. The optional status LED plus test button make servicing easier.
Features
- Plug-in connection
- Protection degree: IP20
- Overvoltage category III
- With a test button
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 777 Ω | |
| Contact type | 4 Form C (NO/NC) | |
| Connection | plug-in connection | |
| switching current | 12 A | |
| Contact material | AgNi | |
| Coil type | monostable | |
| Switching Voltage (AC) | 240 V | |
| Coil voltage (DC) | 24 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364900 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
