7760056188 | Weidmüller
Relay, 4 Form C (NO/NC), 230 V (AC), 15000 Ω, 10 A, 250 V (AC), monostable, 7760056188
Unit Price (€ / pc.)
10.5434 € *
Standard delivery time from the manufacturer is: 13 Weeks

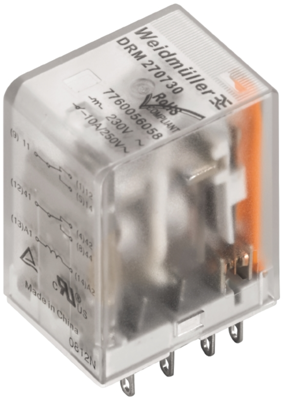

Industrial relay, 7760056188, WEIDMÜLLER
This universal industrial relays with high efficiency is suitable suitable for low, medium and high loads. It is available in a particularly large number of variants for a wide variety of industrial applications, which significantly extends the service life.
Features
- Plug-in connection
- Without test button
- With integrated status display
- Overvoltage category III
Technical specifications
| Switching Voltage (AC) | 250 V | |
| Coil type | monostable | |
| Coil voltage (AC) | 230 V | |
| switching current | 10 A | |
| Connection | plug-in connection | |
| Contact type | 4 Form C (NO/NC) | |
| Contact material | AgNi | |
| Coil resistance | 15000 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364190 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
