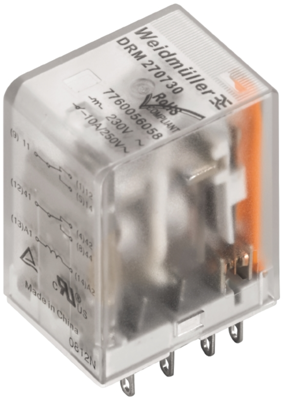

7760056093 | Weidmüller

Name: Relay, 4 Form C (NO/NC), 48 V (AC), 615 Ω, 10 A, 250 V (AC), monostable, 7760056093
Brand: Weidmüller
SKU: 53P3025
Price: 7.90 EUR
Availability: OutOfStock

Relay, 4 Form C (NO/NC), 48 V (AC), 615 Ω, 10 A, 250 V (AC), monostable, 7760056093

Order No.: 53P3025

EAN: 4032248855711

MPN:

7760056093

DRM570548L

Series: D-SERIES DRM

Image may differ

Key Specification:

Contact type 4 Form C (NO/NC)

switching current 10 A

Coil voltage (AC) 48 V

Coil resistance 615 Ω

Show 65 variants

Download Datasheet Technical specifications

Unit Price (€ / pc.)

7.9016 € *

Available: 0 pcs.

Leadtime: 1 Week **

Add to Cart

Total Price:

7.90 € *

*incl. VAT plus shipping costs

**Subject to prior sale

Description

Industrial relay, 7760056093, WEIDMÜLLER

This universal industrial relays with high efficiency is suitable suitable for low, medium and high loads. It is available in a particularly large number of variants for a wide variety of industrial applications, which significantly extends the service life.

Features

Plug-in connection
High dielectric strength
Over voltage category III
Protection degree: IP20

Technical specifications

	Connection	plug-in connection
	Contact type	4 Form C (NO/NC)
	Contact material	AgNi
	Switching Voltage (AC)	250 V
	switching current	10 A
	Coil voltage (AC)	48 V
	Coil type	monostable
	Coil resistance	615 Ω

Show similar products 0

Download

Technical Data Sheet - EN Technical Data Sheet

Declaration of Conformity - EN Declaration of Conformity

Technical Data Sheet - DE Technical Data Sheet

Declaration of Conformity - DE Declaration of Conformity

Logistics

Country of origin	CN
Customs tariff number	85364190

Compliance

RoHS conform	Yes
Date of RoHS guidelines	3/31/15
SVHC free	Yes
