1220130000 | Weidmüller
Relay, 1 Form A (N/O) + 1 Form B (N/C), 230 V (AC), 8000 Ω, 80 A, 300 V (DC), 250 V (AC), monostable, 1220130000
Unit Price (€ / pc.)
22.0983 € *
Available: 0 pcs.
Leadtime: 13 Weeks **

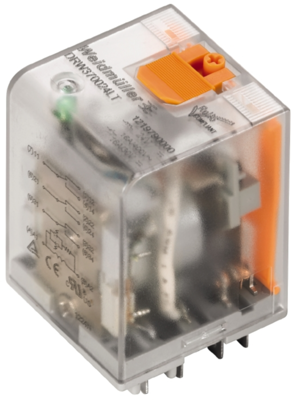

Industrial relay, 1220130000, WEIDMÜLLER
This universal industrial relays with high efficiency is suitable suitable for low, medium and high loads. It is available in a particularly large number of variants for a wide variety of industrial applications, which significantly extends the service life.
Features
- Flat blade connection
- With test button
- Protection degree: IP20
- Surge voltage category III
- With integrated status display
Technical specifications
| Switching Voltage (AC) | 250 V | |
| Coil type | monostable | |
| Coil voltage (AC) | 230 V | |
| switching current | 80 A | |
| Switching Voltage (DC) | 300 V | |
| Connection | faston plug | |
| Contact type | 1 Form A (N/O) + 1 Form B (N/C) | |
| Contact material | AgSnO | |
| Coil resistance | 8000 Ω |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364190 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
