1201260000 | Weidmüller
Relay, 2 Form C (NO/NC), 60 V (DC), 8300 Ω, 15 A, 250 V (AC), monostable, 1201260000
Unit Price (€ / pc.)
7.2233 € *
Available in 6 Days: 100 pcs. - if ordered today

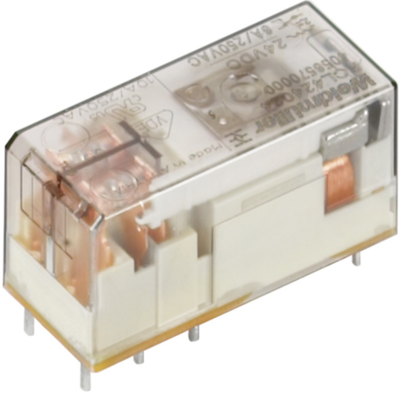

Industrial relay, 1201260000, WEIDMÜLLER
The relay module is available in many variants and can be exchanged quickly and easily. Ideal for use in modular systems. Their large illuminated ejection lever also serves as a status LED with integrated holder for markers, making maintenance easier. It is particularly space-saving and are available in widths from 6.4 mm. This products you can reliably and permanently switch industrial loads.
Features
- Plug-in connection
- Surge voltage category III
- Protection degree: IP20
- Overvoltage category III
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Coil resistance | 8300 Ω | |
| Contact type | 2 Form C (NO/NC) | |
| Connection | plug-in connection | |
| switching current | 15 A | |
| Contact material | AgNi | |
| Coil type | monostable | |
| Switching Voltage (AC) | 250 V | |
| Coil voltage (DC) | 60 V |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | AT |
| Customs tariff number | 85364190 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
