1009710000 | Weidmüller

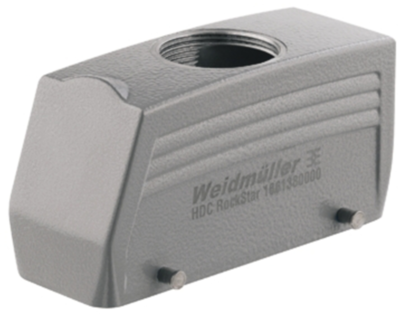

Grommet housing, size D64, die-cast aluminum, 2 x M32, straight, cross bow locking, IP65, 1009710000

Order No.: 50P2375
EAN: 4032248771394
MPN:
1009710000
HDC 64D TOBU 2M32G
Series: HDC - Gehäuse
1009710000 Weidmüller Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
24.8829 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
24.88 € *
Price list
Quantity
Price per unit*
1 pcs.
24.8829 €
10 pcs.
22.8956 €
25 pcs.
21.0630 €
50 pcs.
19.1709 €
*incl. VAT plus shipping costs
Subject to prior sale

Plug housing, 1009710000, WEIDMÜLLER

The 1009710000 is a special die-cast alloy and multi-layered surface sealing that provides a complete protection for the HDC housings. This product has a cleverly designed interlock system, that is manufactured from stainless steel. This guarantees a long lifespan with high resistance to corrosion and impact.

The housing interlock system provides integrated safety. The patented spring system provides the housing interlock with a secure grip and prevents accidental opening.

Technical specifications
Version grommet housing
Shell size D64
Shell Material die-cast aluminum
Cable Outlet 2 x M32, straight
Type of locking cross bow locking
Degree of protection (IP) IP65
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
