1009100000 | Weidmüller

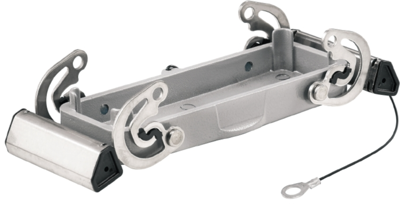

Cover cap, size B24, die-cast aluminum, cross bow locking, IP65, 1009100000

Order No.: 50P2351
EAN: 4032248713844
MPN:
1009100000
HDC 24B DODQ 2QB
Series: HDC - Gehäuse
1009100000 Weidmüller Housings for HDC Connectors
Image may differ
Unit Price (€ / pc.)
28.7861 € *
Standard delivery time from the manufacturer is: 12 Weeks
Total Price:
28.79 € *
Price list
Quantity
Price per unit*
1 pcs.
28.7861 €
10 pcs.
26.7750 €
25 pcs.
24.6330 €
50 pcs.
22.4077 €
*incl. VAT plus shipping costs
Subject to prior sale

Cover cap, 1009100000, WEIDMÜLLER

The 1009100000 is a special die-cast alloy and multi-layered surface sealing that provides a complete protection for the HDC housings. This product has a cleverly designed interlock system, that is manufactured from stainless steel. This guarantees a long lifespan with high resistance to corrosion and impact.

The housing interlock system provides integrated safety. The patented spring system provides the housing interlock with a secure grip and prevents accidental opening.

Technical specifications
Type of locking cross bow locking
Degree of protection (IP) IP65
Shell size B24
Version cover cap
Shell Material die-cast aluminum
Logistics
Country of origin CN
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
SVHC free No
RoHS conform Yes
