9535430000 | Weidmüller

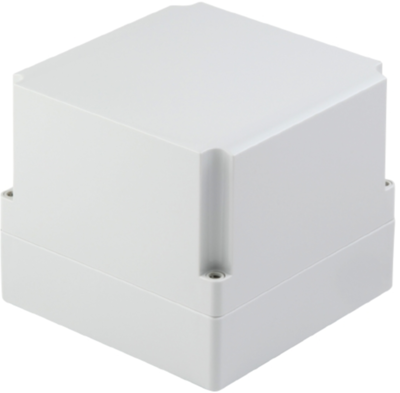

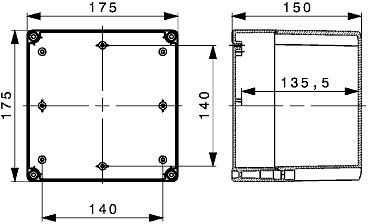

PC enclosure, (L x W x H) 150 x 175 x 175 mm, light gray (RAL 7035), IP67, 9535430000
Unit Price (€ / pc.)
63.0343 € *
Standard delivery time from the manufacturer is: 3 Weeks
Plastic enclosure, 9535430000, Weidmüller
The 9535430000 is ideal for building into electrical, electromechanical and pneumatic devices as well as PCBs. This enclosures is used in situations with extreme mechanical and chemical conditions.
Features
- Cover with lead-seal holes
- Mounting holes outside the seal area
- Receptacle threads for rail mounting, mounting plates and circuit board
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP67 | |
| Height | 175 mm | |
| RAL number | 7035 | |
| Width | 175 mm | |
| Material | PC | |
| Length | 150 mm | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | EE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
