9535380000 | Weidmüller

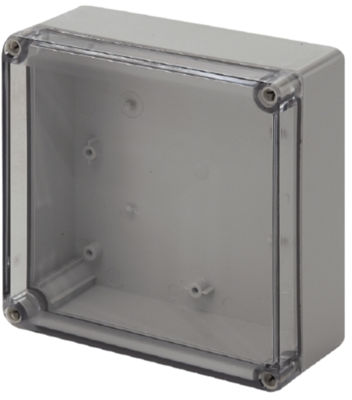

PC enclosure, (L x W x H) 75 x 175 x 175 mm, gray/transparent, IP67, 9535380000
Unit Price (€ / pc.)
46.3624 € *
Standard delivery time from the manufacturer is: 3 Weeks
Plastic enclosure, 9535380000, Weidmüller
The 9535380000 is ideal for building into electrical, electromechanical and pneumatic devices as well as PCBs. This enclosures is used in situations with extreme mechanical and chemical conditions.
Features
- Cover with lead-seal holes
- Mounting holes outside the seal area
- Receptacle threads for rail mounting, mounting plates and circuit board

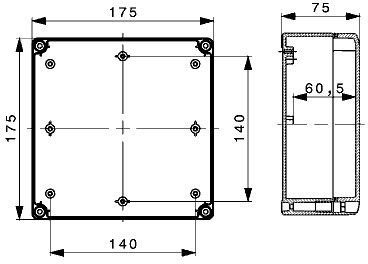

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray/transparent | |
| Length | 75 mm | |
| Degree of protection (IP) | IP67 | |
| Width | 175 mm | |
| Height | 175 mm | |
| Material | PC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | EE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
