9535310000 | Weidmüller

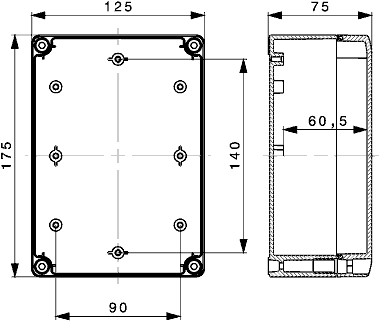

PC enclosure, (L x W x H) 100 x 175 x 125 mm, light gray (RAL 7035), IP67, 9535310000
Unit Price (€ / pc.)
38.9487 € *
Standard delivery time from the manufacturer is: 3 Weeks
Plastic enclosure, 9535310000, Weidmüller
The 9535310000 is ideal for building into electrical, electromechanical and pneumatic devices as well as PCBs. This enclosures is used in situations with extreme mechanical and chemical conditions.
Features
- Cover with lead-seal holes
- Mounting holes outside the seal area
- Receptacle threads for rail mounting, mounting plates and circuit board
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 125 mm | |
| Length | 100 mm | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP67 | |
| Material | PC | |
| Colour | light gray | |
| Width | 175 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | EE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
