9535290000 | Weidmüller

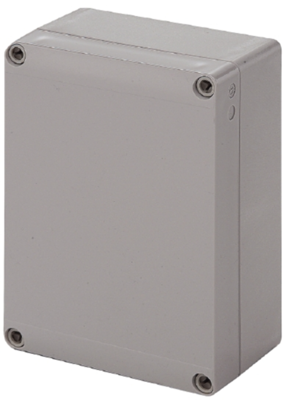

PC enclosure, (L x W x H) 75 x 175 x 125 mm, light gray (RAL 7035), IP67, 9535290000
Unit Price (€ / pc.)
36.2474 € *
Standard delivery time from the manufacturer is: 3 Weeks
Plastic enclosure, 9535290000, Weidmüller
The 9535290000 is ideal for building into electrical, electromechanical and pneumatic devices as well as PCBs. This enclosures is used in situations with extreme mechanical and chemical conditions.
Features
- Cover with lead-seal holes
- Mounting holes outside the seal area
- Receptacle threads for rail mounting, mounting plates and circuit board

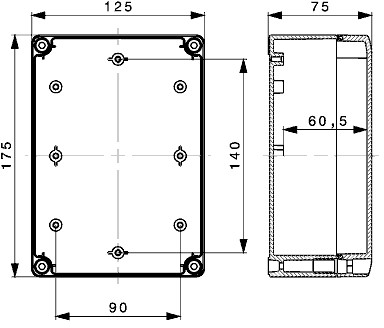

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 125 mm | |
| Width | 175 mm | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP67 | |
| Material | PC | |
| Length | 75 mm | |
| Colour | light gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | EE |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
