9526890000 | Weidmüller

Aluminum enclosure, (L x W x H) 57 x 80 x 175 mm, gray (RAL 7001), IP67, 9526890000

Order No.: 53P7298
EAN: 4032248019106
MPN:
9526890000
KLIPPON K31 EX
Series: Klippon K

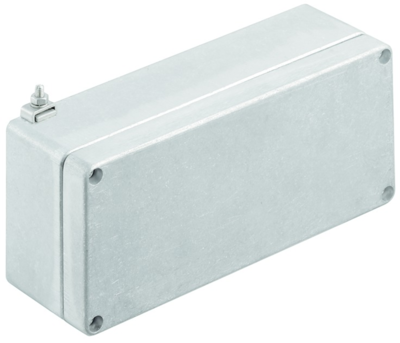

9526890000 Weidmüller General Purpose Enclosures Image 1

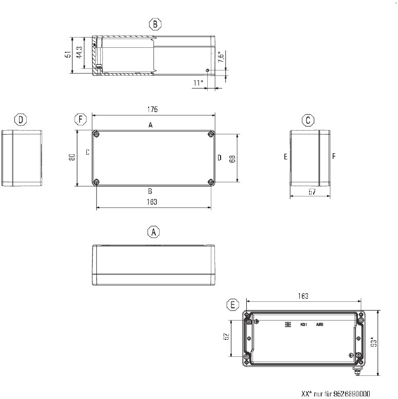

9526890000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
187.9724 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
187.97 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
187.9724 €

Aluminium enclosure, 9526890000, Weidmüller

The 9526890000 is suitable for use in an extremely wide range of different areas. Various components can be installed inside the enclosures, and will benefit in particular from the high temperature resistance, excellent IP protection and the good impact resistance.

Features

  • Mounting holes outside of the gasket area
  • Alloy is resistant to salt water
  • Standardised distributor enclosures with threaded holes and a variety of terminal configurations
Technical specifications
Height 175 mm
Length 57 mm
Colour gray
Material aluminum
RAL number 7001
Width 80 mm
Degree of protection (IP) IP67
Logistics
Customs tariff number 85369095
Country of origin CN
Compliance
SVHC free No
Substance description Lead
RoHS conform Yes
Date of RoHS guidelines 3/31/15
