1939610000 | Weidmüller

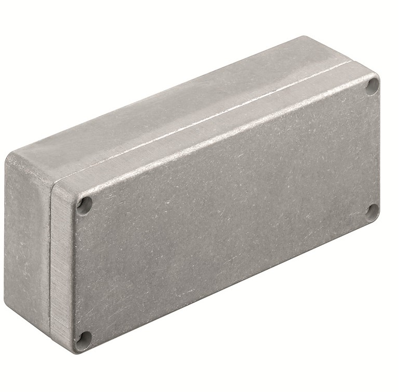

Aluminum enclosure, (L x W x H) 57 x 80 x 175 mm, gray (RAL 7001), IP67, 1939610000
Unit Price (€ / pc.)
46.3148 € *
Standard delivery time from the manufacturer is: 13 Weeks
Aluminium enclosure, 1939610000, Weidmüller
The 1939610000 is suitable for use in an extremely wide range of different areas. Various components can be installed inside the enclosures, and will benefit in particular from the high temperature resistance, excellent IP protection and the good impact resistance.
Features
- Mounting holes outside of the gasket area
- Alloy is resistant to salt water
- Standardised distributor enclosures with threaded holes and a variety of terminal configurations
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 57 mm | |
| Height | 175 mm | |
| Material | aluminum | |
| Degree of protection (IP) | IP67 | |
| Colour | gray | |
| RAL number | 7001 | |
| Width | 80 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
