1306130000 | Weidmüller

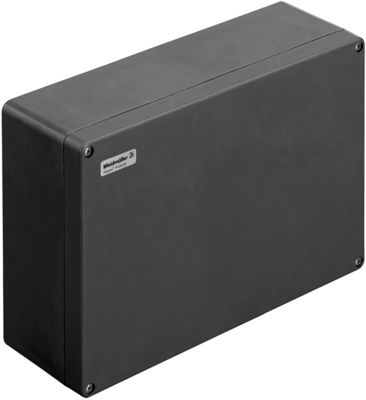

Polyester enclosure, (L x W x H) 120 x 400 x 250 mm, black, IP66, 1306130000
Unit Price (€ / pc.)
306.9843 € *
Standard delivery time from the manufacturer is: 1 Week
Plastic enclosure, 1306130000, Weidmüller
The enclosure range of this product is made from a high-quality glass fibre reinforced polyester and is ideal for applications and environments where corrosion resistance, impact resistance and a high IP protection class are a requirement.
Features
- Cover with stainless steel screws in cross-head / slotted design
- Fixing holes outside the sealed area to ensure high ingress protection of IP66
- Mounting directly in the enclosure or using an internal mounting plate
- Direct wall mounting possible using fixing holes or mounting feet
- Fastening thread to attach mounting rails and plates
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 250 mm | |
| Material | polyester | |
| Length | 120 mm | |
| Width | 400 mm | |
| Degree of protection (IP) | IP66 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
