1306050000 | Weidmüller

Polyester enclosure, (L x W x H) 90 x 122 x 122 mm, gray (RAL 7001), IP67, 1306050000

Order No.: 51P0770
EAN: 4050118108378
MPN:
1306050000
KLIPPON POK 121209 EX
Series: Klippon POK

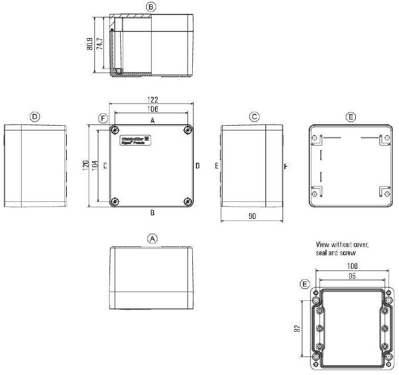

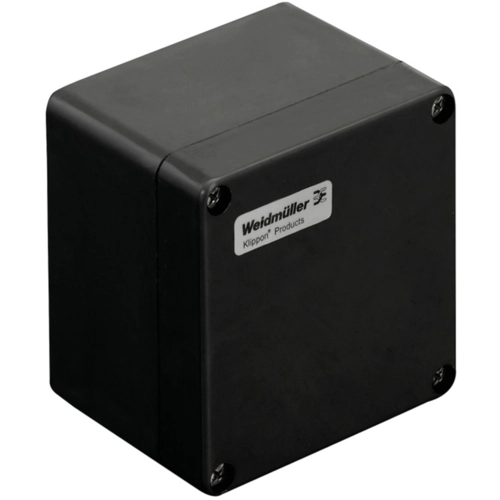

1306050000 Weidmüller General Purpose Enclosures Image 1
1306050000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
78.8018 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
78.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
78.8018 €

Plastic enclosure, 1306050000, Weidmüller

The enclosure range of this product is made from a high-quality glass fibre reinforced polyester and is ideal for applications and environments where corrosion resistance, impact resistance and a high IP protection class are a requirement.

Features

  • Cover with stainless steel screws in cross-head / slotted design
  • Fixing holes outside the sealed area to ensure high ingress protection of IP66
  • Mounting directly in the enclosure or using an internal mounting plate
  • Direct wall mounting possible using fixing holes or mounting feet
  • Fastening thread to attach mounting rails and plates
Technical specifications
Material polyester
Colour gray
Height 122 mm
RAL number 7001
Degree of protection (IP) IP67
Width 122 mm
Length 90 mm
Logistics
Customs tariff number 85389099
Country of origin HU
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
