1200830000 | Weidmüller

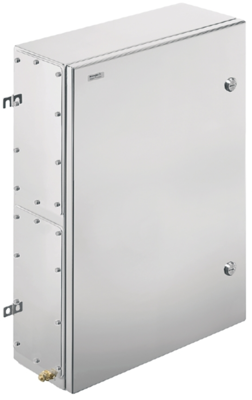

Stainless steel enclosure, (L x W x H) 200 x 508 x 762 mm, silver (RAL 7035), IP66, 1200830000
Unit Price (€ / pc.)
2,940.7042 € *
Standard delivery time from the manufacturer is: 2 Weeks
Terminal box, 1200830000, Weidmüller
The 1200830000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Quick-locking cover, comes with a slot as standard
- Improved temperature performance
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP66 | |
| RAL number | 7035 | |
| Height | 762 mm | |
| Width | 508 mm | |
| Length | 200 mm | |
| Colour | silver | |
| Material | stainless steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
