1200510000 | Weidmüller

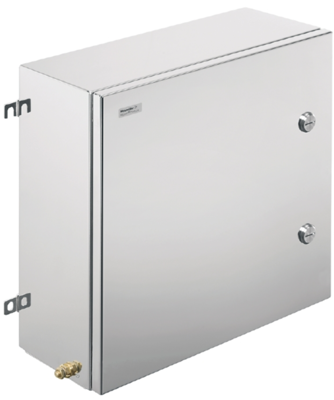

Stainless steel enclosure, (L x W x H) 200 x 480 x 480 mm, silver (RAL 7035), IP66, 1200510000
Unit Price (€ / pc.)
1,825.2577 € *
Standard delivery time from the manufacturer is: 3 Weeks
Terminal box, 1200510000, Weidmüller
The 1200510000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Quick-locking cover, comes with a slot as standard
- Improved temperature performance
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 200 mm | |
| Height | 480 mm | |
| Material | stainless steel | |
| Degree of protection (IP) | IP66 | |
| Colour | silver | |
| RAL number | 7035 | |
| Width | 480 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
