1199910000 | Weidmüller

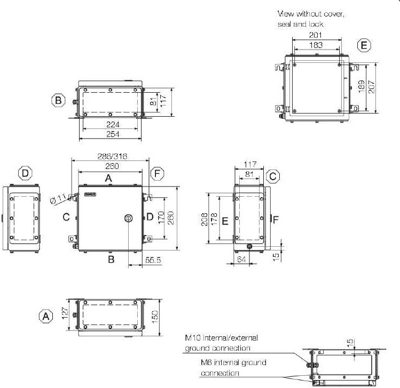

Stainless steel enclosure, (L x W x H) 150 x 260 x 260 mm, silver (RAL 7035), IP66, 1199910000
Unit Price (€ / pc.)
799.4777 € *
Standard delivery time from the manufacturer is: 3 Weeks
Terminal box, 1199910000, Weidmüller
The 1199910000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Quick-locking cover, comes with a slot as standard
- Improved temperature performance
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Colour | silver | |
| Degree of protection (IP) | IP66 | |
| Width | 260 mm | |
| Height | 260 mm | |
| Length | 150 mm | |
| Material | stainless steel | |
| RAL number | 7035 |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
