1195620001 | Weidmüller

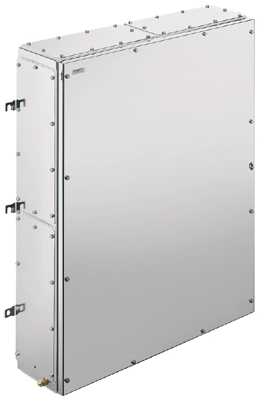

Stainless steel enclosure, (L x W x H) 200 x 740 x 980 mm, silver (RAL 7035), IP66/IP67, 1195620001
Unit Price (€ / pc.)
4,880.1067 € *
Standard delivery time from the manufacturer is: 5 Weeks
Terminal box, 1195620001, Weidmüller
The 1195620001 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 980 mm | |
| Length | 200 mm | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP66/IP67 | |
| Material | stainless steel | |
| Colour | silver | |
| Width | 740 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
