1195360000 | Weidmüller

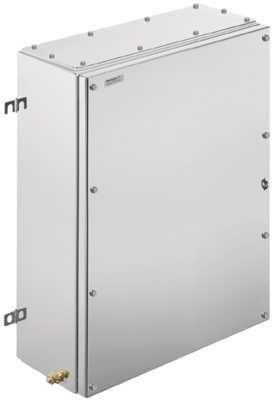

Stainless steel enclosure, (L x W x H) 200 x 450 x 620 mm, silver (RAL 7035), IP66/IP67, 1195360000
Unit Price (€ / pc.)
1,905.6422 € *
Standard delivery time from the manufacturer is: 6 Weeks
Terminal box, 1195360000, Weidmüller
The 1195360000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| Length | 200 mm | |
| Degree of protection (IP) | IP66/IP67 | |
| RAL number | 7035 | |
| Width | 450 mm | |
| Height | 620 mm | |
| Material | stainless steel |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
