1195270002 | Weidmüller
Stainless steel enclosure, (L x W x H) 200 x 350 x 550 mm, silver (RAL 7035), IP66/IP67, 1195270002
Unit Price (€ / pc.)
1,818.3319 € *
Standard delivery time from the manufacturer is: 5 Weeks

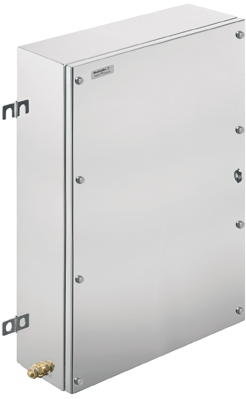

Terminal box, 1195270002, Weidmüller
The 1195270002 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet

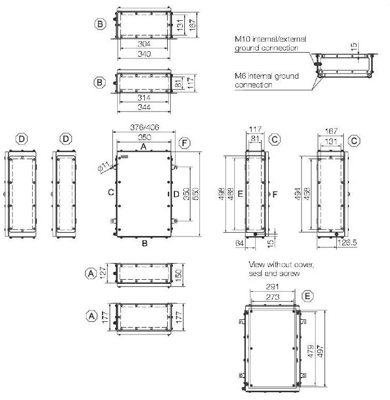

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Width | 350 mm | |
| Colour | silver | |
| Degree of protection (IP) | IP66/IP67 | |
| Length | 200 mm | |
| Material | stainless steel | |
| Height | 550 mm | |
| RAL number | 7035 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
