1194980000 | Weidmüller

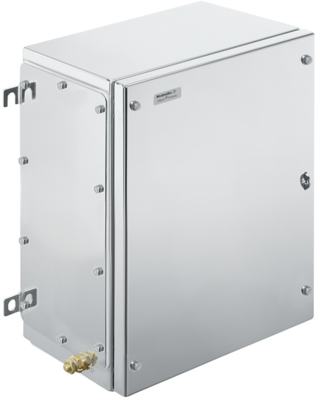

Stainless steel enclosure, (L x W x H) 200 x 300 x 400 mm, silver (RAL 7035), IP66/IP67, 1194980000
Unit Price (€ / pc.)
1,400.3682 € *
Available in 6 Days: 500 pcs. - if ordered today
Terminal box, 1194980000, Weidmüller
The 1194980000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 200 mm | |
| Height | 400 mm | |
| Material | stainless steel | |
| Degree of protection (IP) | IP66/IP67 | |
| Colour | silver | |
| RAL number | 7035 | |
| Width | 300 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
