1194960000 | Weidmüller

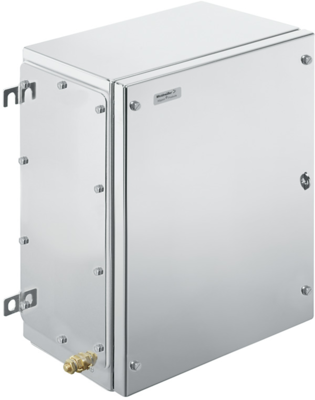

Stainless steel enclosure, (L x W x H) 200 x 300 x 400 mm, silver (RAL 7035), IP66/IP67, 1194960000
Unit Price (€ / pc.)
1,125.8709 € *
Standard delivery time from the manufacturer is: 3 Weeks
Terminal box, 1194960000, Weidmüller
The 1194960000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet

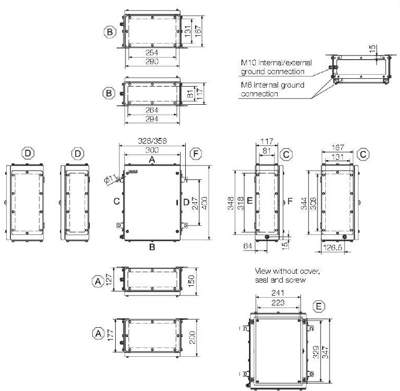

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| Material | stainless steel | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP66/IP67 | |
| Length | 200 mm | |
| Height | 400 mm | |
| Width | 300 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
