1194930000 | Weidmüller

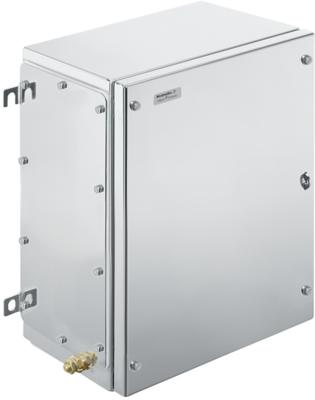

Stainless steel enclosure, (L x W x H) 150 x 300 x 400 mm, silver (RAL 7035), IP66/IP67, 1194930000
Unit Price (€ / pc.)
1,209.9087 € *
Available in 6 Days: 5 pcs. - if ordered today
Terminal box, 1194930000, Weidmüller
The 1194930000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Colour | silver | |
| RAL number | 7035 | |
| Height | 400 mm | |
| Width | 300 mm | |
| Length | 150 mm | |
| Degree of protection (IP) | IP66/IP67 | |
| Material | stainless steel |
Download
Logistics
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
