1194830000 | Weidmüller

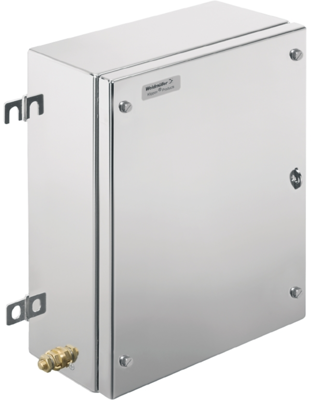

Stainless steel enclosure, (L x W x H) 150 x 260 x 350 mm, silver (RAL 7035), IP66/IP67, 1194830000
Unit Price (€ / pc.)
1,058.9215 € *
Standard delivery time from the manufacturer is: 2 Weeks
Terminal box, 1194830000, Weidmüller
The 1194830000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet

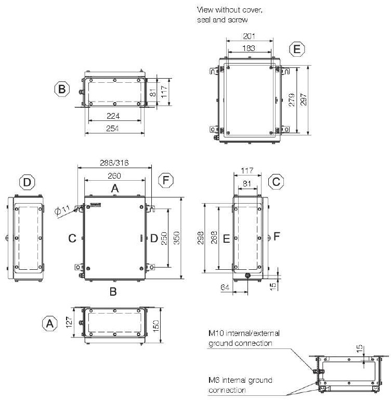

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | silver | |
| RAL number | 7035 | |
| Width | 260 mm | |
| Material | stainless steel | |
| Height | 350 mm | |
| Degree of protection (IP) | IP66/IP67 | |
| Length | 150 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
