1194770000 | Weidmüller

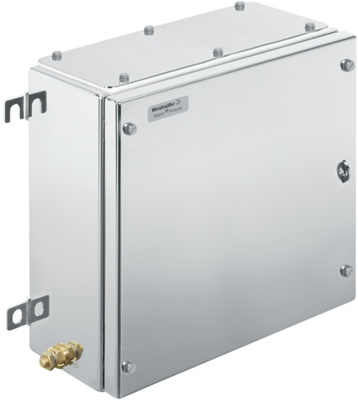

Stainless steel enclosure, (L x W x H) 200 x 306 x 306 mm, silver (RAL 7035), IP66/IP67, 1194770000
Unit Price (€ / pc.)
1,359.3846 € *
Standard delivery time from the manufacturer is: 3 Weeks
Terminal box, 1194770000, Weidmüller
The 1194770000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 306 mm | |
| Material | stainless steel | |
| Width | 306 mm | |
| Degree of protection (IP) | IP66/IP67 | |
| Length | 200 mm | |
| RAL number | 7035 | |
| Colour | silver |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
