1194760000 | Weidmüller

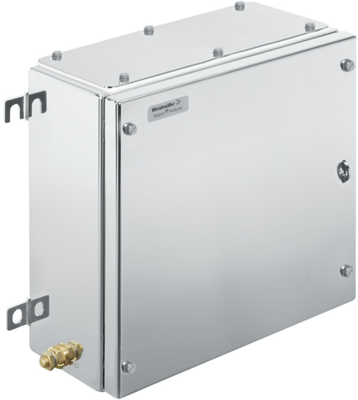

Stainless steel enclosure, (L x W x H) 200 x 306 x 306 mm, silver (RAL 7035), IP66/IP67, 1194760000

Order No.: 50P8066
EAN: 4032248977420
MPN:
1194760000
KTB MH 303020 S4E1
Series: Klippon TB MH
1194760000 Weidmüller General Purpose Enclosures Image 1
1194760000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
983.6778 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
983.68 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
983.6778 €

Terminal box, 1194760000, Weidmüller

The 1194760000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.

Features

  • The gasket is protected against compression
  • Completely removable padlock tab
  • Cover lock outside the sealed zone
  • Improved temperature performance
  • Completely removable lid – without a tool
  • Earthing stud in the cover and base of the enclosure
  • Welded mounting feet
Technical specifications
Length 200 mm
Colour silver
Material stainless steel
RAL number 7035
Width 306 mm
Height 306 mm
Degree of protection (IP) IP66/IP67
Logistics
Country of origin DE
Customs tariff number 85369095
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
