1194610000 | Weidmüller

Stainless steel enclosure, (L x W x H) 150 x 260 x 260 mm, silver (RAL 7035), IP66/IP67, 1194610000

Order No.: 50P8015
EAN: 4032248977208
MPN:
1194610000
KTB MH 262615 S4E1
Series: Klippon TB MH
1194610000 Weidmüller General Purpose Enclosures Image 1
1194610000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
739.7992 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
739.80 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
739.7992 €

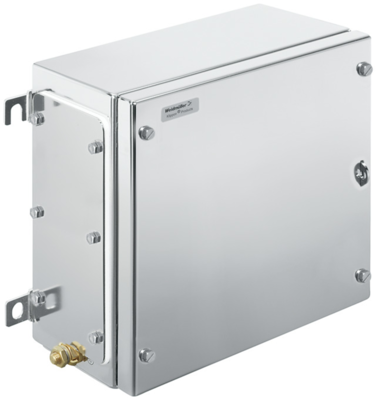

Terminal box, 1194610000, Weidmüller

The 1194610000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.

Features

  • The gasket is protected against compression
  • Completely removable padlock tab
  • Cover lock outside the sealed zone
  • Improved temperature performance
  • Completely removable lid – without a tool
  • Earthing stud in the cover and base of the enclosure
  • Welded mounting feet

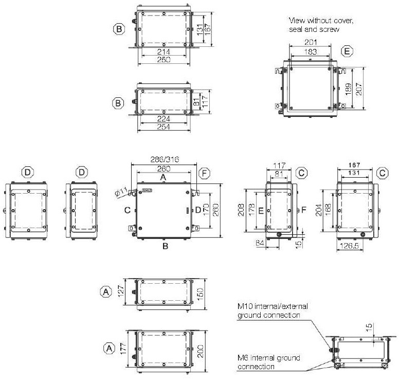

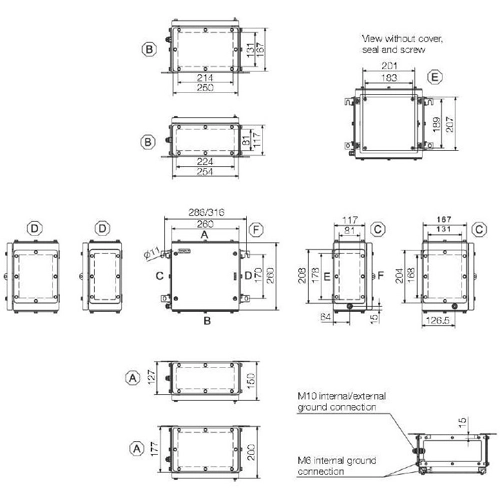

Technical specifications
Length 150 mm
Colour silver
Material stainless steel
RAL number 7035
Width 260 mm
Height 260 mm
Degree of protection (IP) IP66/IP67
Logistics
Country of origin PL
Customs tariff number 85369095
Compliance
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
