1194590000 | Weidmüller
Stainless steel enclosure, (L x W x H) 133 x 152 x 229 mm, silver (RAL 7035), IP66/IP67, 1194590000
Unit Price (€ / pc.)
1,014.5107 € *
Available in 6 Days: 5 pcs. - if ordered today

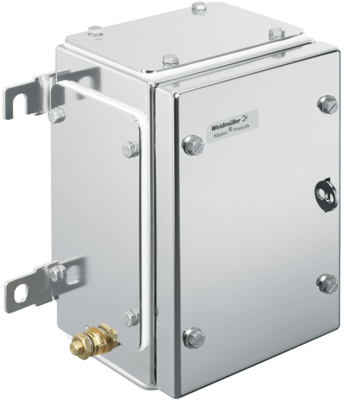

Terminal box, 1194590000, Weidmüller
The 1194590000 provides excellent performance characteristics, even under the most difficult environmental conditions. In addition, it complies with the stricter requirements of potentially explosive atmospheres found specifically in the process or power generation industries.
Features
- The gasket is protected against compression
- Completely removable padlock tab
- Cover lock outside the sealed zone
- Improved temperature performance
- Completely removable lid – without a tool
- Earthing stud in the cover and base of the enclosure
- Welded mounting feet

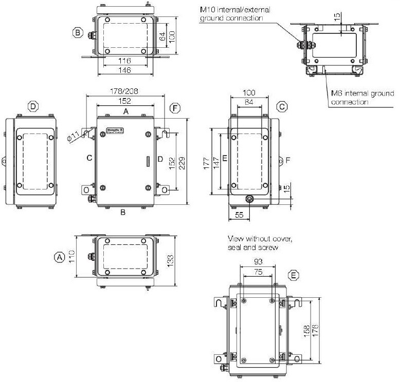

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP66/IP67 | |
| Length | 133 mm | |
| Colour | silver | |
| Material | stainless steel | |
| Width | 152 mm | |
| RAL number | 7035 | |
| Height | 229 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369095 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
