1058820000 | Weidmüller

Stainless steel enclosure, (L x W x H) 80 x 120 x 150 mm, silver (RAL 7035), IP67, 1058820000

Order No.: 50P4170
EAN: 4032248800698
MPN:
1058820000
KLIPPON STB 1.1 SS E
Series: Klippon STB

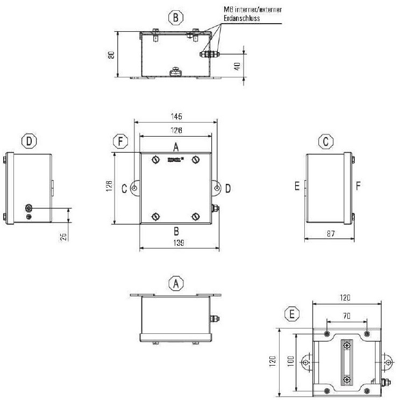

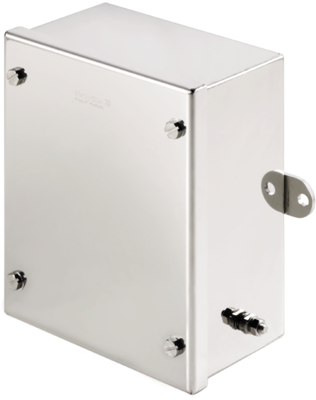

1058820000 Weidmüller General Purpose Enclosures Image 1
1058820000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
431.6606 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
431.66 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
431.6606 €

Small terminal box, 1058820000, Weidmüller

Small terminal box,120 x 150 x 80 mm, Electropolished, Flange plate: No, Silver. This product ideally suited for the energy, Process and transportation industries.

Features

  • High-temperature-resistant seal
  • Flexible options for fastening the internal mounting rail
  • Secure, permanent function of the seal is ensured by seal compression protection
  • Earthing stud in the cover and base of the enclosure
  • Laser cut weld seams for increased quality
Technical specifications
Colour silver
Degree of protection (IP) IP67
Width 120 mm
Height 150 mm
Length 80 mm
Material stainless steel
RAL number 7035
Logistics
Country of origin PL
Customs tariff number 85369095
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
