1058810000 | Weidmüller

Stainless steel enclosure, (L x W x H) 80 x 120 x 120 mm, silver (RAL 7035), IP67, 1058810000

Order No.: 50P4169
EAN: 4032248800681
MPN:
1058810000
KLIPPON STB 1 SS E
Series: Klippon STB

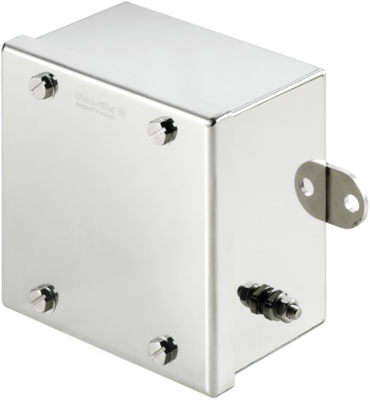

1058810000 Weidmüller General Purpose Enclosures Image 1

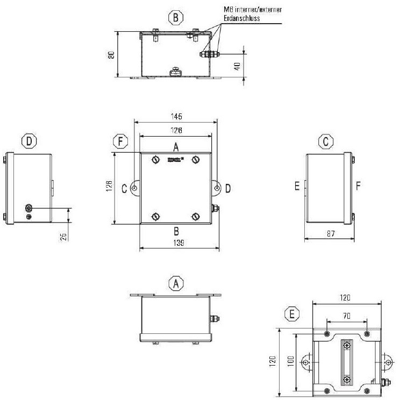

1058810000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
395.1514 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
395.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
395.1514 €

Small terminal box, 1058810000, Weidmüller

Small terminal box, 120 x 120 x 80 mm, Electropolished, Flange plate: No, Silver. This product ideally suited for the energy, Process and transportation industries.

Features

  • High-temperature-resistant seal
  • Flexible options for fastening the internal mounting rail
  • Secure, permanent function of the seal is ensured by seal compression protection
  • Earthing stud in the cover and base of the enclosure
  • Laser cut weld seams for increased quality
Technical specifications
Material stainless steel
Colour silver
Height 120 mm
RAL number 7035
Degree of protection (IP) IP67
Width 120 mm
Length 80 mm
Logistics
Customs tariff number 85369095
Country of origin PL
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
