1024970000 | Weidmüller

Stainless steel enclosure, (L x W x H) 80 x 120 x 120 mm, pebble gray (RAL 7032), IP67, 1024970000

Order No.: 50P2983
EAN: 4032248745197
MPN:
1024970000
KLIPPON STB 1 MS HT
Series: Klippon STB

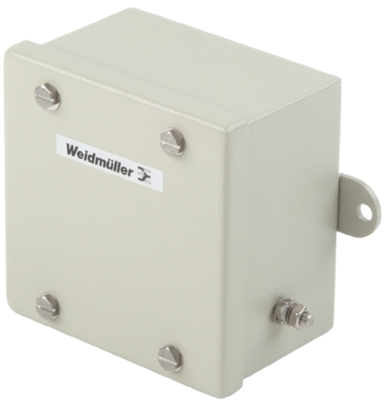

1024970000 Weidmüller General Purpose Enclosures Image 1
1024970000 Weidmüller General Purpose Enclosures Image 2
Image may differ
Unit Price (€ / pc.)
224.8148 € *
Available in 6 Days: 5 pcs. - if ordered today
Total Price:
224.81 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
224.8148 €

Small terminal box, 1024970000, Weidmüller

Small terminal box, 120 x 120 x 80 mm, Powder coated, Silicone, Pebble gray. This product ideally suited for the energy, Process and transportation industries.

Features

  • High-temperature-resistant seal
  • Flexible options for fastening the internal mounting rail
  • Secure, permanent function of the seal is ensured by seal compression protection
  • Earthing stud in the cover and base of the enclosure
  • Laser cut weld seams for increased quality
Technical specifications
Length 80 mm
Colour pebble gray
Material stainless steel
RAL number 7032
Width 120 mm
Height 120 mm
Degree of protection (IP) IP67
Logistics
Country of origin PL
Customs tariff number 85369095
Compliance
SVHC free Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
