0342500000 | Weidmüller

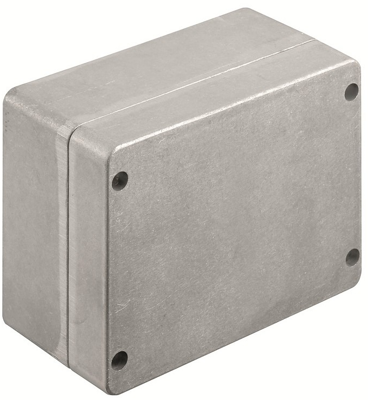

Aluminum enclosure, (L x W x H) 100 x 200 x 160 mm, gray (RAL 7001), IP67, 0342500000
Unit Price (€ / pc.)
101.5784 € *
Available in 6 Days: 5 pcs. - if ordered today
Aluminium enclosure, 0342500000, Weidmüller
The 0342500000 is suitable for use in an extremely wide range of different areas. Various components can be installed inside the enclosures, and will benefit in particular from the high temperature resistance, excellent IP protection and the good impact resistance.
Features
- Mounting holes outside of the gasket area
- Alloy is resistant to salt water
- Standardised distributor enclosures with threaded holes and a variety of terminal configurations

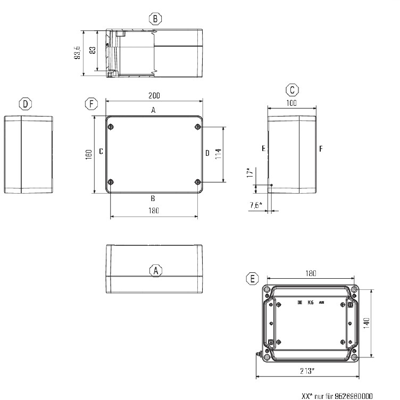

Technical specifications
| Filter | Property | Value |
|---|---|---|
| Height | 160 mm | |
| Material | aluminum | |
| Width | 200 mm | |
| RAL number | 7001 | |
| Length | 100 mm | |
| Degree of protection (IP) | IP67 | |
| Colour | gray |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
