9509580000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-10 mm², 250 V, 13 A, 9509580000
Unit Price (€ / pc.)
15.3629 € *
Standard delivery time from the manufacturer is: 1 Week

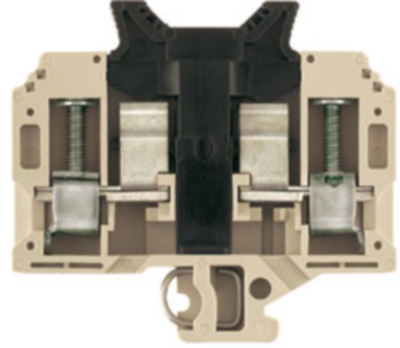

Fuse terminal block, 9509580000, Weidmüller
Fuse terminal block, screw terminal, fuse disconnector, open at one end, screw terminal, 10 mm², 250 V, 13 A, G-Si. 1x1/4, TS 32, dark beige
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.5-10 mm² | |
| AWG cross-section | AWG 22 to 8 | |
| Rated Voltage | 250 V | |
| Rated current | 13 A | |
| Length | 63 mm | |
| Width | 13 mm | |
| Height | 69 mm | |
| Connection | screw connection | |
| Colour | dark beige |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
