Fuse terminal block, 3 pole, 0.5-4.0 mm², 500 V, 6.3 A, 8146450000
Unit Price (€ / pc.)
17.136 € *
Standard delivery time from the manufacturer is: 1 Week
Fuse terminal block, 8146450000, Weidmüller

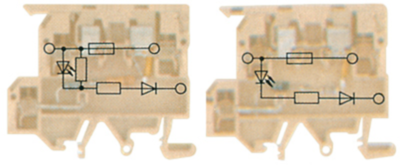

Fuse terminal block, screw connection, fuse element, with LED, open on one side, screw connection, 4 mm², 500 V, 6.3 A, G-Si. 5x20, TS 35, TS
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Height | 62.75 mm | |
| Degree of soiling | 3 | |
| Number of terminals | 2 | |
| Length | 55.5 mm | |
| Pin number | 3 pole | |
| Connection | screw connection | |
| Colour | beige/yellow | |
| Rated current | 6.3 A | |
| Cable cross-section | 0.5-4.0 mm² | |
| Width | 8 mm | |
| Version | fuse terminal block | |
| Rated Voltage | 500 V | |
| AWG cross-section | AWG 12 |
Download
Logistics
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
