2466610000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-2.5 mm², 12 V, 10 A, 2466610000
Unit Price (€ / pc.)
7.7945 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
7.79 € *
Price list
Quantity
Price per unit*
1 pcs.
7.7945 €
10 pcs.
7.1638 €
50 pcs.
6.5212 €
100 pcs.
5.8667 €
*incl. VAT plus shipping costs
Subject to prior sale

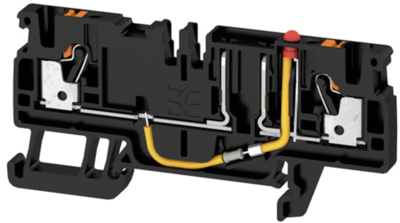

2-Conductor fuse terminal block, 2466610000, Weidmüller
2-conductor fuse terminal block, PUSH IN with actuating element, 2.5 mm², 12 V, 10 A, mini plug-in fuse, TS 35, black
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 28 to 12 | |
| Degree of soiling | 3 | |
| Pin number | 2 pole | |
| Length | 37.65 mm | |
| Colour | black | |
| Cable cross-section | 0.5-2.5 mm² | |
| Connection | push-in connection | |
| Rated current | 10 A | |
| Rated Voltage | 12 V | |
| Number of terminals | 2 | |
| Width | 5.1 mm | |
| Height | 77.5 mm | |
| Version | fuse terminal block |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
