2466600000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-2.5 mm², 24 V, 10 A, 2466600000
Unit Price (€ / pc.)
5.4621 € *
Standard delivery time from the manufacturer is: 3 Weeks

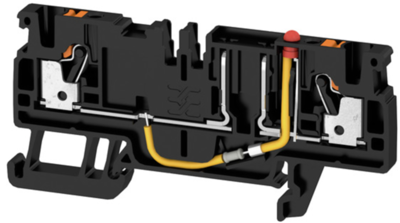

2-Conductor fuse terminal block, 2466600000, Weidmüller
2-conductor fuse terminal block, PUSH IN with actuating element, 2.5 mm², 24 V, 10 A, mini plug-in fuse, TS 35, black
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated Voltage | 24 V | |
| Pin number | 2 pole | |
| Number of terminals | 2 | |
| Height | 77.5 mm | |
| Colour | black | |
| Degree of soiling | 3 | |
| Rated current | 10 A | |
| Cable cross-section | 0.5-2.5 mm² | |
| Version | fuse terminal block | |
| Connection | push-in connection | |
| AWG cross-section | AWG 28 to 12 | |
| Width | 5.1 mm | |
| Length | 37.65 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
