2429870000 | Weidmüller

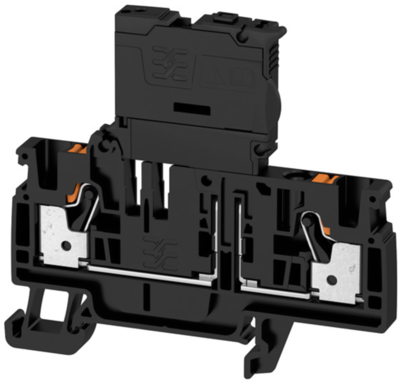

Fuse terminal block, 2 pole, 0.5-4.0 mm², 36 V, 6.3 A, 2429870000
Unit Price (€ / pc.)
12.5664 € *
Available: 29 pcs.
Total Price:
12.57 € *
Price list
Quantity
Price per unit*
1 pcs.
12.5664 €
10 pcs.
11.5668 €
50 pcs.
10.5196 €
100 pcs.
9.4724 €
*incl. VAT plus shipping costs
Subject to prior sale
Fuse terminal block, 2429870000, Weidmüller
Fuse terminal block, PUSH IN, 4 mm², 36 V, 6.3 A, G-Si. 5x20, TS 35, black
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | fuse terminal block | |
| Number of terminals | 2 | |
| Pin number | 2 pole | |
| Cable cross-section | 0.5-4.0 mm² | |
| AWG cross-section | AWG 26 to 12 | |
| Rated Voltage | 36 V | |
| Rated surge voltage | 4 kV | |
| Rated current | 6.3 A | |
| Degree of soiling | 3 | |
| Length | 68 mm | |
| Width | 6.1 mm | |
| Height | 74 mm | |
| Connection | push-in connection | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
