1880390000 | Weidmüller

Fuse terminal block, 2 pole, 0.5-4.0 mm², 250 V, 6.3 A, 1880390000

Order No.: 52P4769
EAN: 4032248544660
MPN:
1880390000
WSI 4/2/LD 140-250V AC/DC
Series: W-Reihe
1880390000 Weidmüller Fuse Terminals
Image may differ
Unit Price (€ / pc.)
10.1507 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
10.15 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.1507 €

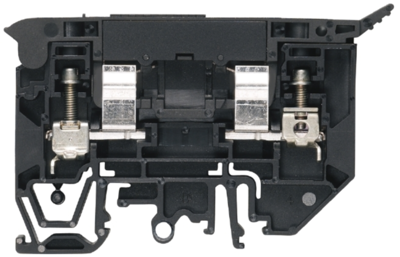

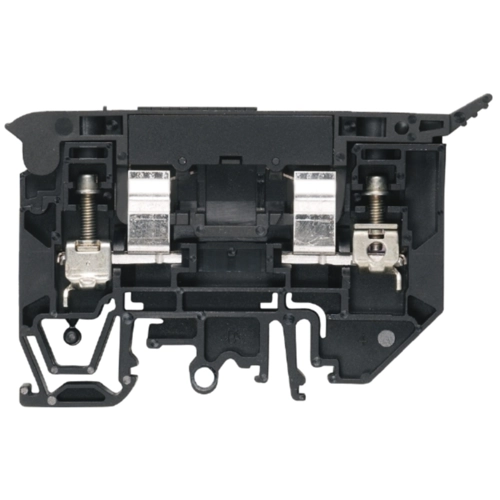

Fuse terminal block, 1880390000, Weidmüller

Fuse terminal block, screw-type, fuse disconnector, with LED, open on one side, screw-type, 4 mm², 250 V, 6.3 A, 6,3x32 mm.

Fuse terminal block consisting of a terminal block base with fuse link carrier.

Technical specifications
Filter Property Value
Rated Voltage 250 V
Version fuse terminal block
Rated current 6.3 A
Colour black
Connection screw connection
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.5-4.0 mm²
Length 53.5 mm
AWG cross-section AWG 30 to 10
Height 81.6 mm
Width 9.1 mm
Logistics
Property Value
Country of origin CN
Customs tariff number 85369095
Compliance
Property Value
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
