1879750000 | Weidmüller

Fuse terminal block, 1 pole, 1.5-6.0 mm², 250 V, 10 A, 1879750000

Order No.: 52P4757
EAN: 4032248481682
MPN:
1879750000
ZSI 6-2 2X2.5/G20/LD4
Series: Z-Reihe
1879750000 Weidmüller Fuse Terminals
Image may differ
Unit Price (€ / pc.)
10.1983 € *
Available: 19 pcs.
Available in 6 Days: 100 pcs. - if ordered today
Total Price:
10.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
10.1983 €

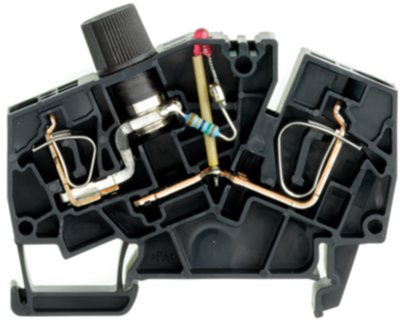

Fuse terminal block, 1879750000, Weidmüller

Fuse terminal block, tension clamp connection, fuse element, with LED, for pluggable cross-connection, open at one end, tension clamp connection, 6 mm², 250 V

Fuse terminal block consisting of a terminal block base with fuse link carrier.

Technical specifications
Filter Property Value
Number of terminals 2
Pin number 1 pole
AWG cross-section AWG 20 to 8
Connection tension clamp connection
Width 12.2 mm
Degree of soiling 3
Cable cross-section 1.5-6.0 mm²
Rated Voltage 250 V
Version fuse terminal block
Rated current 10 A
Height 68 mm
Colour black
Length 55 mm
Logistics
Property Value
Customs tariff number 85369095
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
