1119870000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-6.0 mm², 250 V, 6.3 A, 1119870000
Unit Price (€ / pc.)
15.2201 € *
Available in 6 Days: 50 pcs. - if ordered today
Total Price:
15.22 € *
Price list
Quantity
Price per unit*
1 pcs.
15.2201 €
10 pcs.
13.9944 €
50 pcs.
12.7449 €
100 pcs.
11.4716 €
*incl. VAT plus shipping costs
Subject to prior sale

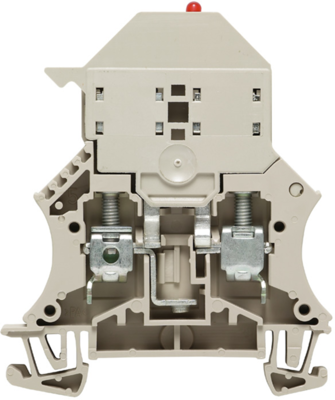

Fuse terminal block, 1119870000, Weidmüller
Fuse terminal block, screw terminal, fuse disconnector, with LED, for screw-type cross-connection, open at one end, screw terminal, 6 mm², 250 V
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 8 | |
| Degree of soiling | 3 | |
| Pin number | 2 pole | |
| Length | 71.5 mm | |
| Colour | dark beige | |
| Cable cross-section | 0.5-6.0 mm² | |
| Connection | screw connection | |
| Rated current | 6.3 A | |
| Rated Voltage | 250 V | |
| Number of terminals | 2 | |
| Width | 7.9 mm | |
| Height | 60 mm | |
| Version | fuse terminal block |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CZ |
| Customs tariff number | 85369095 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
