1014100000 | Weidmüller

Fuse terminal block, 2 pole, 0.5-6.0 mm², 36 V, 6.3 A, 1014100000

Order No.: 50P2578
EAN: 4008190156954
MPN:
1014100000
WSI 6/2/LD 10-36V DC/AC
Series: W-Reihe

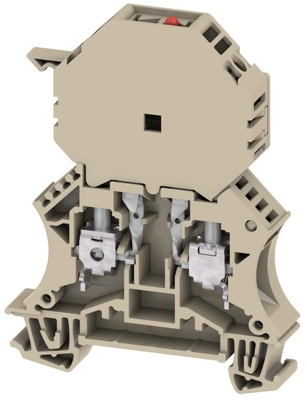

1014100000 Weidmüller Fuse Terminals
Image may differ
Unit Price (€ / pc.)
11.9833 € *
Available in 6 Days: 125 pcs. - if ordered today
Total Price:
11.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.9833 €

Fuse terminal block, 1014100000, Weidmüller

Fuse terminal block, screw terminal, fuse disconnector, with LED, for screwable cross-connection, open on one side, screw terminal, 6 mm², 36 V.

Fuse terminal block consisting of a terminal block base with fuse link carrier.

Technical specifications
Filter Property Value
Version fuse terminal block
Number of terminals 2
Pin number 2 pole
Cable cross-section 0.5-6.0 mm²
AWG cross-section AWG 20 to 8
Rated Voltage 36 V
Rated surge voltage 6 kV
Rated current 6.3 A
Degree of soiling 3
Length 78.5 mm
Width 11.9 mm
Height 60 mm
Connection screw connection
Colour dark beige
Logistics
Property Value
Country of origin CZ
Customs tariff number 85369095
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
RoHS conform Yes
