0225820000 | Weidmüller
Fuse terminal block, 2 pole, 0.5-10 mm², 500 V, 50 A, 0225820000
Unit Price (€ / pc.)
38.0086 € *
Available in 6 Days: 50 pcs. - if ordered today

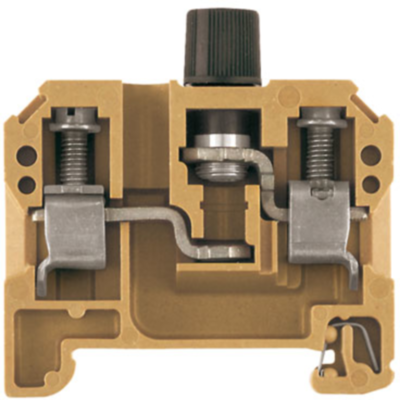

Fuse terminal block, 0225820000, Weidmüller
Fuse terminal block, screw connection, fuse element, with LED, open on one side, screw connection, 10 mm², 500 V, G-Si. 5x20, TS 35, medium yellow
Fuse terminal block consisting of a terminal block base with fuse link carrier.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| AWG cross-section | AWG 20 to 8 | |
| Rated surge voltage | 6 kV | |
| Pin number | 2 pole | |
| Length | 53 mm | |
| Colour | yellow | |
| Cable cross-section | 0.5-10 mm² | |
| Connection | screw connection | |
| Rated current | 50 A | |
| Rated Voltage | 500 V | |
| Number of terminals | 2 | |
| Width | 13 mm | |
| Height | 54 mm | |
| Version | fuse terminal block |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
